Monocoque vs Spaceframe: The British Chassis Revolution in Sports Cars

Imagine holding a single piece of steel that is both incredibly light and rigid enough to hold a race car together at 200 mph. That is the magic of the spaceframe is a structural framework made from interconnected tubes or beams that provides rigidity with minimal weight. For decades, British engineers obsessed over this concept, believing that if you could build a skeleton strong enough, you didn't need heavy body panels. But then came the monocoque, a tub-like structure that changed everything. This isn't just about history; it's about understanding why your modern sports car feels so solid yet weighs less than a sedan.

The Birth of the Lightweight Skeleton

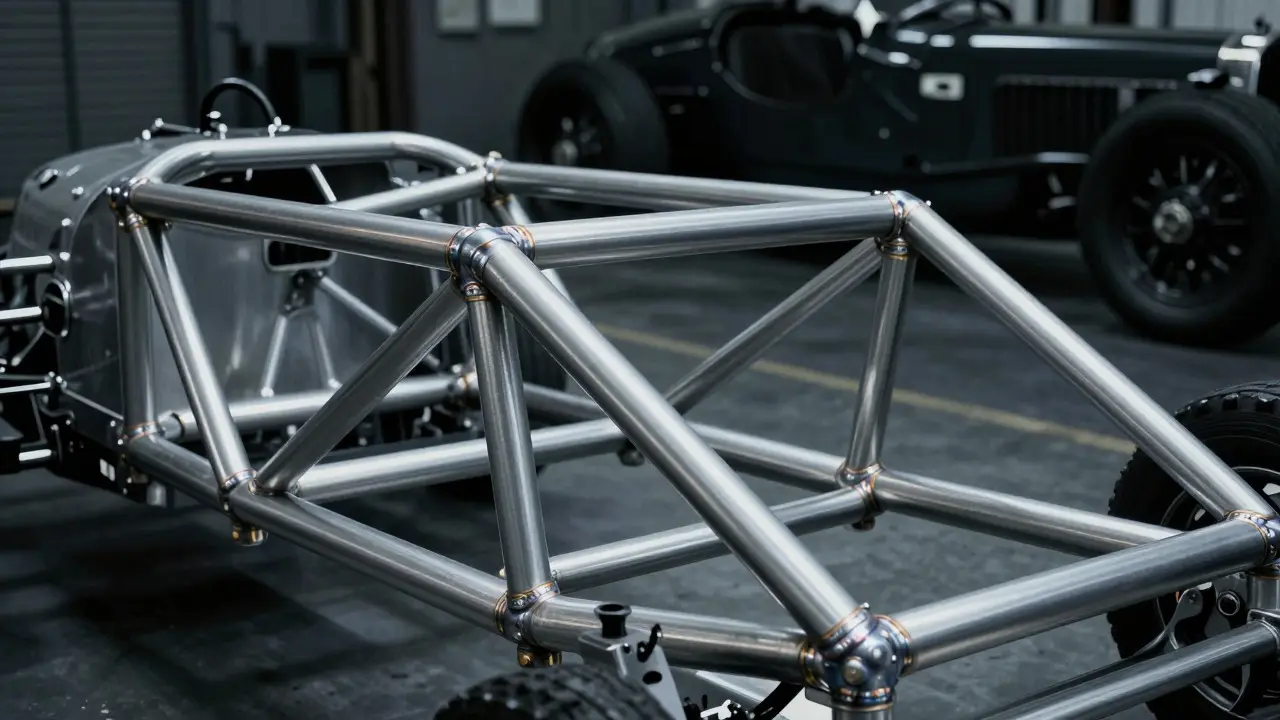

In the early days of motorsport, cars were built like furniture. You had a ladder frame-two long rails connected by cross members-and you bolted the engine, seats, and body onto it. It was simple, but it was heavy. Every inch of metal added weight, and every kilogram cost horsepower on the track. Enter Colin Chapman of Lotus is a British automotive company known for its lightweight racing cars and innovative engineering. Chapman realized that strength doesn't come from mass; it comes from geometry. He pioneered the use of thin-walled aluminum tubes welded into a triangular lattice. This design, often called a spaceframe, distributed stress evenly across the entire structure rather than concentrating it on two main rails.

The result was a chassis that was lighter and stiffer than anything before it. The Lotus 72 is a Formula One car introduced in 1970 featuring a revolutionary spaceframe chassis became the perfect example. It dominated the 1970s not because it had the biggest engine, but because its chassis allowed drivers to push harder without worrying about the car twisting under braking. The spaceframe allowed for precise control of torsional rigidity-the resistance to twisting forces-which is critical for handling. If a car twists when you corner, the suspension geometry changes, and the tires lose grip. A spaceframe minimizes this twist while keeping weight low.

The Monocoque Challenge

While Lotus was mastering the tube-and-triangle approach, other British manufacturers were looking at aviation technology. The term "monocoque" comes from French, meaning "single shell." In aircraft, the skin itself bears the load, eliminating the need for an internal frame. Applying this to cars was tricky. Early attempts failed because steel sheets weren't stiff enough on their own. They needed reinforcement. Engineers began adding internal bulkheads, floor pans, and side sills to create a self-supporting tub. This was the birth of the stressed-skin monocoque.

The turning point came with the Jaguar E-Type is a legendary British grand tourer produced from 1961 to 1975, known for its aerodynamic design and performance. While not a pure monocoque, it utilized a unitized body structure where the floor pan and firewall acted as primary load-bearing elements. This reduced the need for a separate heavy frame. Later, the McLaren F1 is a high-performance sports car manufactured by McLaren Automotive, famous for its carbon fiber monocoque pushed this further. By using carbon fiber composites, McLaren created a central tub that was lighter and stronger than any aluminum spaceframe. The driver sat inside this tub, which was then wrapped in body panels. This separation of structure and styling allowed designers to shape the exterior for aerodynamics without compromising structural integrity.

Why Rigidity Matters More Than Weight

You might think lighter is always better. And generally, it is. But in sports car engineering, rigidity-to-weight ratio is the real metric. A car can be light but floppy. Imagine trying to steer a shopping cart at speed; it’s light, but it wobbles. Now imagine steering a solid block of concrete; it’s rigid, but too heavy to move quickly. The goal is to find the sweet spot where the chassis resists deformation with minimal mass.

Spaceframes excel here because triangles are inherently stable shapes. No matter how much force you apply to a triangle, its angles don’t change unless you break a side. Monocoques achieve stability through sheer surface area and material thickness. However, monocoques have a weakness: they are vulnerable to localized damage. If you hit a curb hard, a dent in a monocoque floor can weaken the entire section. A spaceframe, with its discrete tubes, allows for easier repair and often absorbs impact energy more predictably. This is why many endurance racers still prefer hybrid approaches, combining a spaceframe front end for crash absorption with a monocoque center section for driver protection.

Comparing the Two Approaches

To understand the trade-offs, let's look at how these two structures compare in practical terms. Each has distinct advantages depending on the application, whether it's a road car, a race car, or a prototype.

The Hybrid Solution in Modern Engineering

Today, few manufacturers stick strictly to one method. The most successful sports cars use a hybrid approach. Take the Ferrari 488 GTB is a mid-engine sports car produced by Ferrari, featuring a carbon fiber monocoque and aluminum subframes. It uses a carbon fiber monocoque for the central passenger cell to ensure maximum safety and stiffness around the driver. However, the front and rear sections use aluminum spaceframe-style subframes. Why? Because the front end needs to absorb impacts from crashes, and a deformable spaceframe does this better than a rigid monocoque. Similarly, the rear subframe holds the engine and transmission, allowing for easy maintenance access without dismantling the main tub.

This blend gives engineers the best of both worlds. The monocoque provides a rigid platform for the suspension and driver, ensuring consistent handling. The spaceframe subframes add crashworthiness and reduce overall weight by using lighter materials in non-critical areas. This evolution shows that British innovation didn't stop at choosing one side; it matured into integrating the strengths of both.

Impact on Driving Dynamics

How does this affect you behind the wheel? A well-designed spaceframe or monocoque directly influences how the car communicates with the driver. Torsional rigidity determines how much the chassis flexes during aggressive cornering. If the chassis flexes, the suspension arms move relative to the body, changing the camber angle of the tires. This leads to unpredictable handling. A stiff chassis keeps the suspension geometry constant, giving the driver confidence to brake later and accelerate earlier.

Furthermore, vibration isolation is another key factor. A monocoque, especially one made of composite materials, can dampen road noise and vibrations better than a tubular spaceframe. This contributes to the luxury feel of modern grand tourers. Race cars, however, prioritize weight savings over comfort, which is why they often use bare-bones spaceframes with minimal sound deadening. The choice of structure ultimately defines the character of the car: a raw, communicative race machine or a refined, comfortable daily driver.
